| MOQ: | 1 |
| Price: | Tailored |
| Standard Packaging: | Plywood |
| Delivery Period: | 2 Months |
| Payment Method: | T/T |
| Supply Capacity: | 1 Set Per Month |

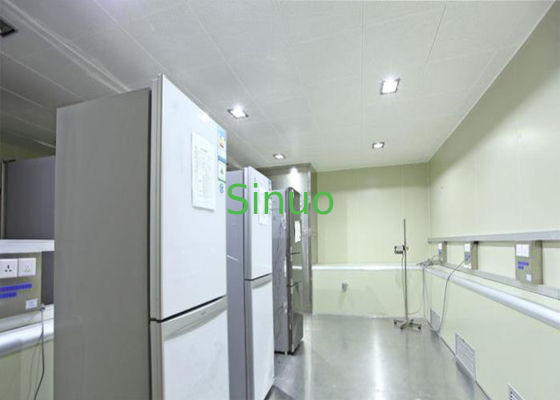

IEC 62552-1 Refrigerator & Freezer Performance Test Chamber 4 Test Station
Overview:
This refrigerator performance lab is designed and manufactured as one testing chamber. The Freezing Capacity, Energy consumption and other performances of refrigerator are tested by means of testing the lab parameters, such as temperature, and electrical performance. This installation can be used to test the performance of 4 Household vertical refrigerators or 2 lying freezers, and can also be used for other standard operating condition related tests and expanded tests, meeting the need for product sampling inspection and product development.
In this test system, the operation of the equipment is controlled by a programmable controller and a HMI, test running data are collected by a high accuracy data collector, the data can be transferred at real time to an upper level computer for processing, the computer displays, stores, outputs and prints test reports.
Standards:
Design and testing according to the following standards:
► IEC 62552-1, IEC 62552-2, IEC 62552-3
Achievable test contents
1. Refrigeration speed.
2. Storage temperature.
3. Work factor.
4. Power consumption test.
5. Freezing ability.
6. Load recovery.
7. Ice making capacity.
8. Condensation test, etc.
Temperature and humidity conditions
| Temperature | Control | Humidity | Control |
| 0℃ | √ | No humidity requirements | No |
| 10℃ | √ | 40～95%RH | No |
| 16℃ | √ | 40～95%RH | √ |
| 32℃ | √ | 40～95%RH | √ |
| 43℃ | √ | 40～95%RH | √ |
| 50℃ | √ | No humidity requirements | No |
Requirements for data processing and display equipment and printing equipment.
The equipment is required to have fast processing speed, large memory space, and large hard disk capacity.
Video
Video
Video
Video
Video
Video
|
|
