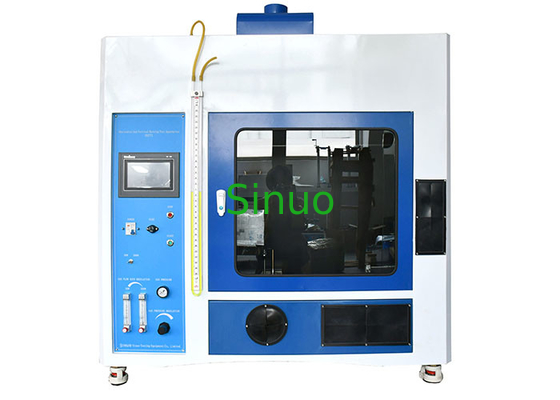

IEC 60695-11-2 Horizontal And Vertical Burning Test Apparatus
Product overview:
This horizontal and vertical burning test apparatus designed and manufactured according to IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20. It is required by IEC 60065: 2005 and IEC 60065:2014 Clause 20.2.1, 20.2.5 and Annex G.
It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.

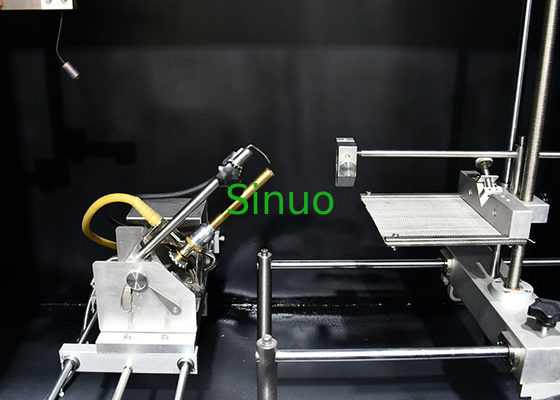

This test equipment adopts integral type inlet ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. The test equipment has matte black background, multi-functional flame measure gauge and large observation window. The control system of this test equipment is composed of PLC+ 7” touch screen, with high degree of automation and high precision of parameter display. The appearance of this test equipment is beautiful, the performance is stable and operation is convenient.
Technical parameters:
| Working voltage | Match client's local power supply requirements |
| Power/grade | 50W and 500W double power switching |
| Control operation mode | PLC control and 7 inch touch screen, with infrared remote controller |
| Bunsen burner |
Imported high quality Bunsen burner, brand: HUMBOLDT IEC60695-11-3/IEC60695-11-4/10, UL94, etc. inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow |
50W:105±5ml/min or 18±1mm 500W:965±30ml/min or 117±3 mm Adjusted through flow meters |
| U type pressure gauge back pressure water column height |
50W:10mm; 500W:125±5 mm |
| Test angle |
50W: 0°,45°; 500W: 20° |
| Flame application time | 0-9999X0.1s can be preset |
| Flame application times | 0-9999 times can be preset |
| Afterflame/Afterglow Time | 0-9999X0.1s can be displayed |
| Test flame calibration |
Temperature measuring copper head: 50W:Ф5.5mm±0.01mm, weight before drilling 1.76 ± 0 .01 g 500W:Ф9mm±0.01mm, weight before drilling 10 ± 0 .05g |
| Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100° | |
|
Distance between the Bunsen burner port to temperature measuring copper block: 50W: 10±1 mm 500W: 55±1 mm |
|
|
Flame height: 50W: 20±2mm (there is no internal and external flame) 500W: inner flame:40±2mm, outer flame:125±10mm |
|
|
Temperature rise time from100±2° to 700°±3°: 50W: 44±2 s 500W: 54±2 s |
|
| Lighting | Equip with lighting in the test chamber |
| Inner chamber and dimension | > 0.75 cube, matte black background, with exhaust fan, dimension:1100*550*1200mm, 135kg |
Video
Video
Video
|
|
