| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Set per Month |

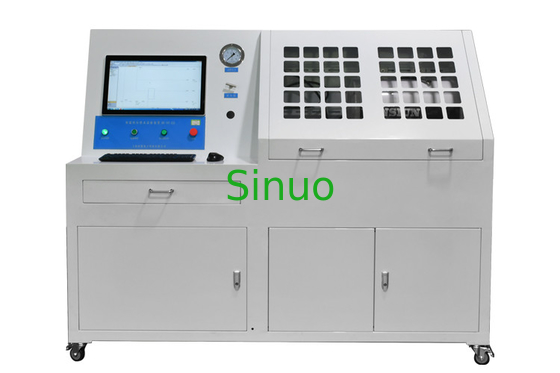

IEC 62368-1 Clause Annex G.15 2.5Mpa Hydrostatic Pressure Test System
Product Information:
This hydraulic pressure test apparatus is designed and manufactured according to the standard requirements of IEC 62368-1 clause Annex G.15, IEC 60335-1 clause 22.47, IEC 60335-2-5 cl.22.101, IEC 60335-2-7 cl.22.101, IEC 60335-2-35 22.103, IEC 60335-2-24 cl.22.7, IEC 60335-2-15:22.7, etc. The test samples including valves, water heaters, treated fabrics, etc., this test apparatus is used to test the blasting performance test and water sealing performance test, water pressure resistance and static pressure of test samples.
The test system adopts touch computer control and pneumatic water pressure booster pump and its pressure control device, which has the following advantages, such as printing data, displaying pressure curve, test pressure setting, constant pressure time, pressure rise rate, etc. The advanced technology and design and the beautiful appearance makes it easy to operate.
The used environment:
Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH;
Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation.
| Applied Standard | IEC 62368-1 |
| Applied Clause | Annex G.15 |
| Power supply | Single phase AC 220V, 50Hz or match client's local power supply requirements |
| Operation interface | Touch type computer |
| Pressurized mode | Air pressure |
| Test pressure | 0.5-42MPa |
| Hydraulic pressure control accuracy | 5%FS |
| Water temperature | RT+5°C-60℃ controllable (accuracy ±1℃) |
| Water tank volume | 30L |
| Pressure apply or hold time | 0-999999s can be set |
|
Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH; Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation |
