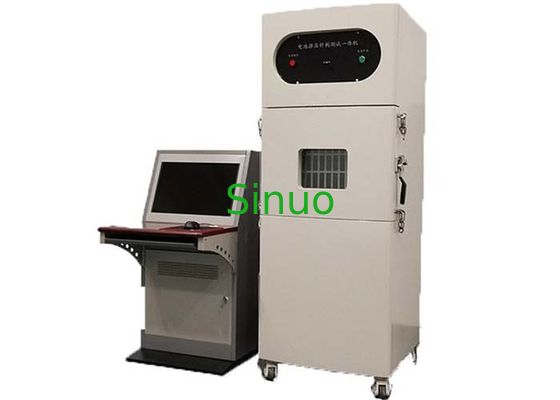

IEC 62133 Battery Crush And Nail Penetration Test Chamber 150KN With Computer Control

IEC 62133 Battery Crush And Nail Penetration Test Chamber 150KN with computer control

Standard:

Conforms to AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a)

IEC62133-2012, IS0 12405-4:2018, etc.

Features:

1. The test software has a voltage acquisition function: according to the test requirements of the single battery, until the battery shell breaks or the battery is short-circuited (the internal voltage of the battery becomes 0V), the battery voltage change during the test will be automatically collected. When the voltage is zero, the equipment automatically stops the test.

2. According to the test requirements of the power battery: the test system can first squeeze to 30% of the size of the battery module (i.e., the deformation). Or set a certain pressure value (such as the extrusion force is 20kN). When the extrusion test reaches the set force value and the set pressure holding time is also reached, the equipment stops the test.

3. The sample can be tested according to any of the three conditions of pressure, deformation, and voltage.

4. The three test modes can be used as control variables for any combination of conditions. That is, three or two test conditions can be set at the same time. If any one of the conditions is met, the device will stop the test.

5. The test system can display the speed during the test. The test speed required for the test can also be set in the computer software.

6. The computer operating system is processed in the windows dialog box. The table mode can be planned by yourself. The test data is recorded throughout the process. It provides saving, comparison and tracking functions.

7. The dedicated test control motherboard can record force, displacement and voltage at the same time. The control motherboard will send instructions to the computer in real time, and the control interface will record and monitor the extrusion force, temperature, voltage, speed and deformation in real time. It is convenient to generate reports or export data directly. The control motherboard is easy to operate.

8. During the test, the test function can be controlled by collecting voltage signals. The voltage will change during the battery test. Enter a specified voltage value in the test system, and the system outputs a signal. The extrusion test stops when the set voltage value is reached.

Technical parameters:

User battery cell size	Maximum size (length x width x height): 225*185*160mm, weight: 18kg-20kg
Test space	1000×1000×1000mm (width, depth and height)
Dimensions	1300×1400×2000mm (width, depth and height, subject to actual design)
Equipment structure	Box-type structure
Smoke exhaust port	Smoke exhaust port is 150mm in diameter
Test hole	A 50mm hole is opened on each side
Control method	Remote computer control, distance ≥10m
Drive method	Electric cylinder drive
Pressure range	1～150kN
Pressure accuracy	±1%FS
Pressure resolution	0.01KN
Pressure holding time	≥100h can be set
Crush acupuncture speed	0.1-40mm/s (adjustable)
Speed ​​accuracy	0.1mm/s~5mm/s, accuracy ±0.05mm/s; 5mm/s~40mm/s, accuracy ±0.1mm/s
Speed ​​resolution	≤0.01mm/s
Displacement	0～400mm
Displacement accuracy	±0.1mm
Steel needle	1) Specifications: φ3mm, φ4mm, φ5mm, φ6mm, φ7mm, φ8mm 2) Length: L=200mm 3) Material: Stainless steel 4) Angle: 45°~60° 5) Quantity: 2 each
Crush needle direction	Crush and acupuncture from top to bottom
Crush head	R75*750mm semi-cylinder, easy to disassemble.
Flat crush head	With a flat crush head
Needle fixture
Force display	Computer display
Sensor resolution	1／10000
Unit conversion	Kgf, N, kN
Temperature acquisition system	Temperature acquisition range 0～+1000℃
	Temperature resolution: 0.1℃
	Temperature measurement accuracy: ±0.5℃
	Temperature acquisition channel: 2 channels
	Temperature acquisition frequency: 100ms
Voltage acquisition system	Voltage acquisition range: 0~100V
	Voltage acquisition accuracy: ≤±0.5%FS
	Resolution: 10mV
	Voltage acquisition channel: 1 channel
	Voltage sampling frequency: 100ms
Sampling line length	2m
Acquisition frequency	≥50Hz
Cutoff condition	Pressure, voltage and deformation can be set separately and monitored simultaneously. The test can be stopped as long as any one or more variables reach the set value.
Power	25KW
Power Supply	380V
Weight (approx.)	800kg





Environmental Requirements:



1. Main power leakage circuit breaker: AC380(1±10%)V (50±0.5)Hz three-phase four-wire + protective ground wire. Install 10㎡ wire, 3P 63A leakage protection switch

2. Power cable: one five-core cable (four-core cable + protective ground wire), about 3 meters long (outside the box)

3. Installation site:

① The ground is flat and well ventilated;

② No strong vibration around the equipment;

③ No strong electromagnetic field around the equipment;

④ No flammable, explosive, corrosive substances and dust around the equipment;

⑤ Avoid direct sunlight or high temperature and humidity;

⑥ The ground load-bearing capacity of the site: not less than 650kg/m2 (prerequisite: the channel size around the equipment is ≥ 600 mm; the load weight is ≤ 500kg);

⑦ There is appropriate space for use and maintenance around the equipment:

⑧ There should be space around the equipment for at least one person to pass through, i.e. ≥600mm;

⑨ There should be space for the equipment door to open and close normally. And there should be no other objects in front of the equipment door.

4. Environmental conditions: Temperature: 20℃±5℃; Relative humidity: ≤85%RH; Atmospheric pressure: 80kPa～106kPa
