MOQ: | 1 |
Price: | Customized |
Standard Packaging: | Plywood |
Delivery Period: | 1 Month |
Payment Method: | T/T |
Supply Capacity: | 15 Sets per Month |

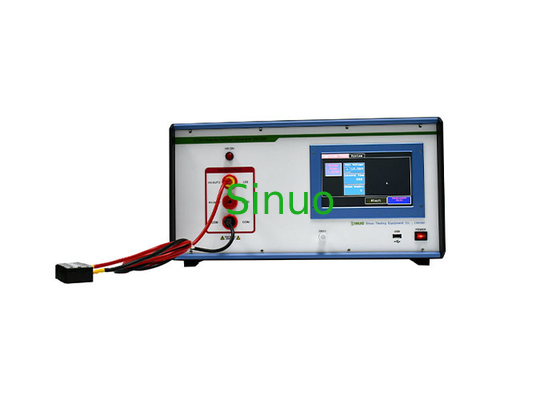

IEC 61851-1 Impulse Voltages Generator For Over-Voltages Test
Product information:
The impulse test generator conforms to the standard requirements of IEC 61851-1 clause 12.7, IEC 61851-23 clause 11.4, etc.
Technical parameters:
Model |
SN1104 |
SN1104A (Optional) |
DC high voltage |
Max. 12.5kV |
6kV |
Impulse voltage wave |
Impulse wavefront time: 1.2 µs ± 30 %; Half value of after wave time: 50 µs ± 20 % Please note that the waveform should be checked on an external oscilloscope |
Impulse wavefront time: 10 µs ± 30 %; Half value of after wave time: 700 µs ± 20 % Please note that the waveform should be checked on an external oscilloscope |
Instrument internal resistance |
12Ω± 10%and 500Ω± 10% |
40Ω±10% |
Peak voltage: 300 V~ 12,500V |
300-12500V, Low: 300 V~ 2,500V; High: 2,500 V~ 12,500V |
0~6kV, ± 5% |
Impact interval time |
5 ~ 99s |
30~999s |
Impact cycles |
1 ~ 9999 |
|
Polarity |
Positive and negative |
|
Working power source | Rated voltage: ~ 220V±10%, 50Hz, Power consumption: 50 VA | |
Dimension | 430mm×180mm×480mm | |
Weight | 20 KG |
Application:
It is used to verify that the appliances shall withstand the transient over-voltages to which they may be subjected. The impulse voltage test is a destructive test in which a breakdown occurs if the test specimen cannot withstand the applied voltage. When the sample breaks down, sparks and discharge sounds will be generated. The peak voltage of the instrument will drop significantly (close to zero) when it is no-load. When the same voltage is applied again, the above phenomenon will occur.
![]() |
