| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood Case |
| Delivery Period: | 30 days |
| Payment Method: | T/T |
| Supply Capacity: | 10 Sets Per Month |

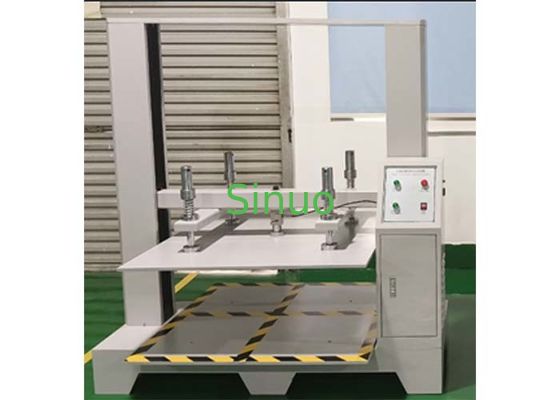

Compression Testing Machine with 100KN For Compressive Strength Of carton packaging
Product information:
The purpose of this machine is to test the compressive strength of products to prevent product deformation and damage due to insufficient strength during handling, stacking, storage, and transportation. It is the most direct testing instrument for testing the compressive strength of carton packaging, plastic packaging containers, etc. It is used to determine the load bearing and stacking height of the product.
The test standard is based on: GB/T1019 "General Rules for Packaging of Household Appliances", GB/T4857.3 "Packaging Transport Package Static Load Stacking Test Method” and can implement national or international standards such as GB, ISO, ASTM, BS, DIN, and JIS.
Control software introduction:
1.Software operating system language: English.
2. Force value unit: N, KN, Kgf, Lbf
3. Length unit: mm, cm, inch can be freely converted
4. Control mode: computer software to set speed, set load break (rupture), running time and other control modes
5. Type of curve: load-displacement, load-time, displacement-time. Stress-strain, strain-time, stress-time. The vertical and horizontal coordinates of the curve can be set arbitrarily.
Technical parameter:
1. Test force range: 6-100KN (specifiable)
2. Strength measurement display accuracy: 0.001Kg
3. Unit switching: gf, kgf, N, KN, lbf
4. Resolution: 1/50000
5. Load accuracy: ±0.5%
6. Force magnification: stepless speed regulation
7. Displacement resolution: 1/1000
8. Test speed: 10±3mm (fixed speed, speed regulation 10-100mm/min adjustable)
9. Test space: 1300×1300×2000mm (length, width and height)
10. Test function: ① Anti-compression function
② Sustaining pressure function (time can be adjusted from 0-9999H)
11. Operation mode: Computer control, using Windows work platform, clear-cut operation mode plus detailed help documents and prompts make it the simplest and easiest-to-use software in the current testing machine industry
12. Using multi-threaded parallel processing technology, the force-displacement, force-time, displacement-time, stress-strain and other curves are displayed simultaneously in real time during the test process. You can switch to the curve screen you want to see at will, and you can view user settings, etc. The innovative Microsoft Word report format is simple and easy to use. If you can use Word, you can edit the beautiful reports you want.
13. Power system: servo motor drive, gapless precision ball screw, worm gear reducer
14. Structural material: 45# steel, A3 steel, cold-rolled steel, chrome steel comprehensive structure
15. Protection device: upper and lower limit protection, overload protection, overvoltage protection, leakage protection
16. You can plan the test report mode by yourself. You can choose to compare the data of multiple curves at the same time by translation, comparison, etc.;
17. Working power supply: 220V/50HZ
18. Power: 1.5KW
19. Machine weight: about 1200kg
20. Equipment external dimensions: about: 2000*1300*2700mm (width, depth and height)
Working conditions of the test machine:
1. At room temperature within the range of 10℃-35℃, relative humidity is not more than 80%;
2. Correctly installed on a stable foundation or workbench;
3. In a vibration-free environment, leave a space of not less than 1m around;
4. No corrosive media around;
5. The fluctuation range of the power supply voltage should not exceed 10% of the rated voltage.
|
|
