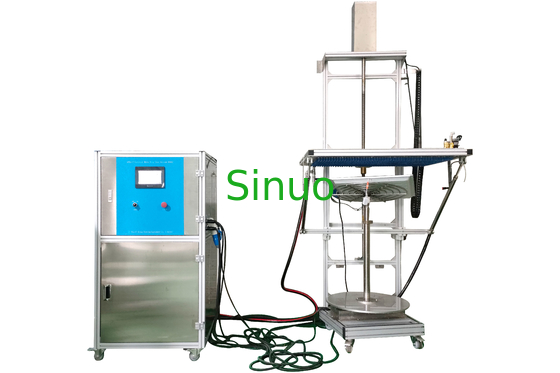

IEC 60529 Wall-Mounted IPX1 And IPX2 Vertical Drip Box Testing Equipment
Product overview:
The rain vertical dripping testing equipment is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water dripping at degree IPX1 and IPX2.
The water ingress testing equipment ensures that the dripping speed reaches the standard required value by controlling the water supply flow, the test equipment can produce a uniform flow of water drops over the whole area of the enclosure.
Standards compliant:
IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX1 and IPX2
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”
Structure:
The test equipment consists of a drip mechanism, an electrical control cabinet and a turntable. The bracket of drip box is wall-hanging and with anti-drop function, which can lift automatically controlled by motor. The turntable has a rotation speed of 1r/min, used for IPX1 test; the turntable can be tilted 15°, used for IPX2 test. The test equipment is equipped with a water filter cleaning device to prevent pinhole blockage. This whole system adopts open structure.
Use environment:
Power supply: AC380V±5%/50Hz, 3KVA, or match client’s local power supply requirements.
Use place: temperature 15-35 ° C, relative humidity 25%-75%, atmospheric pressure 86 ~ 106kpa (860 mbar -1060 mbar), there should be equipped with lighting and waterproof leakage switch (or socket), the ground needs to be flat, and the water intake and drainage function should be good.
Water source: clean water or tap water without impurities, equipped with water cleaning filter.
Technical parameters:
| Control & Operation | PLC and touch screen intelligent control system |
| Drip Area | WD=1000×1000mm, other sizes can be customized |
| Drip Height | 200mm distance of the needle to the sample is automatically measured by infrared sensor |
| Drip Speed / Water Flow | 1+0.5 0mm/min or 3+0.5 0mm/min switchable, rainfall is digitally controlled |
| Needle Pinhole Aperture | Φ0.4mm |
| Drip Hole Spacing | 20mm×20mm |
| Turntable | Diameter: Φ600mm, can be tilted 15°, rotating speed 1r/min, with lifting support frame, bearing capacity ≤50kg |
| Drip Box Lifting | Driven by motor, adjustable from 1100-1800mm, screw guide ensures smooth lifting and self-locking |
| Test Time | 0-99.9min, can be preset |
| Installation Method | Wall-mounted |
| Water Storage System | The control box and water storage tank are built in one cabinet, the water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. |
| Safety Protection | Phase sequence protection, leakage protection, water shortage protection, abnormal protection |
| Equipment Dimensions | WDH=1250×1450mm×2450mm |
Software interfaces for reference:
Video
Video
Video
Video
Video
|
|
