| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Carton Box |
| Delivery Period: | 3 Days |
| Payment Method: | T/T |
| Supply Capacity: | 100 Sets Per Month |

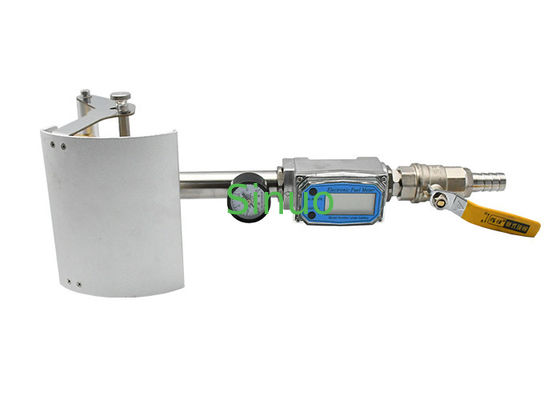

IPX3 IPX4 Hand-held Spray Nozzle With Digital Flowmeter IEC 60529 Figure 5
Product Overview:
The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.
It meets the requirements of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.
Technical Parameters:
| Parameters of Spray Nozzle | Outer diameter: Ф102mm, spherical diameter: SФ75.5mm, 1 hole at the center, 2 inner circles of 12 holes at 30° pitch,4 outer circles of 24 holes at 15° pitch , total 121 holes of Ф0.5mm, made of brass. |
| Required Water Flow | 10L/min±5% |
| Pressure | 50～150Kpa, the pressure gauge measuring range: 0～0.25Mpa |
| Moving Shield | Made of aluminum, can be detachable |
| Flowmeter | 8L/min ~120L/min, digital display |
Structure:
This device is manufactured according IEC 60529 figure 5, with a digital flowmeter and a pressure gauge on the handle, it can achieve IPX3 / IPX4 hand-held spraying test by connecting water pipe (water pipe should be prepared by user).
It ensures that the water spraying and splashing speed reaches the standard required value by controlling the water supply flow, make the enclosure of the specimen to be splashed in all directions.
